CR2032 SS 304 Coin Cell Case set, incl. top cover, bottom container, spacer, and spring - 100sets/pack
Introduction

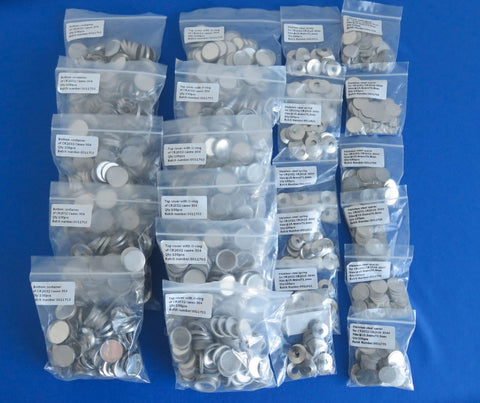

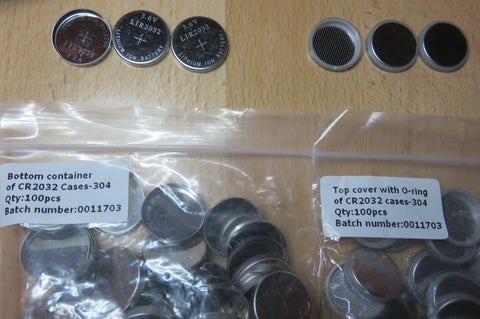

The CR2032 (20dx3.2tmm) Coin Cell set is made from Stainless steel 304. Each set includes a top cover with O-ring, a bottom container, a steel spacer and a steel spring.

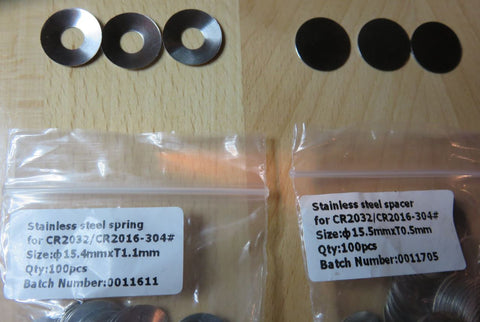

Spring: Ø15.4mm x T 0.2 mm x H 1.5mm
Spacer: Ø15.5mm x T 0.5 mm
Application Notes:
• After being properly crimped, the external height should be around 3.0 mm
• The internal diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm
• The best crimper is ECCCM-100 for best results.
• For ordering more than 5 packs, please contact us for discount.
